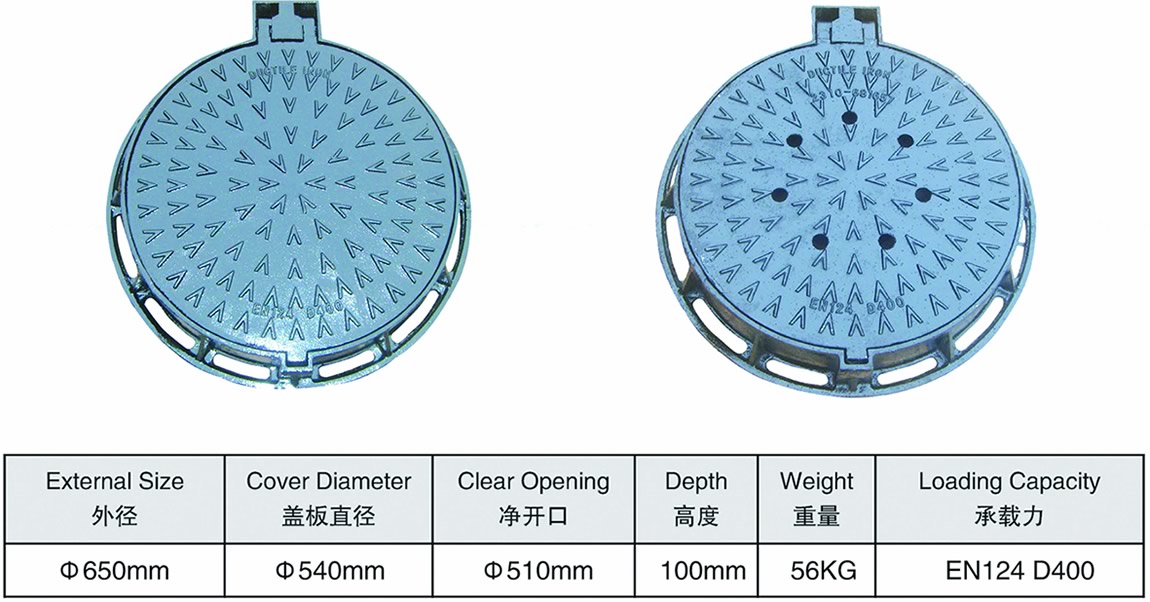

Round manhole cover
This pattern is designed to support medium traffic, it is perfect for installing on the roads, particularly road carriageways(including pedestrian streets), stabilised hard shoulders and parking areas for all manner of vehicles
Material: made from spheroidal graphite ductile cast iron, according to ISO 1083(Type 500-7) and standard EN 1563
Standard: Compliant with the European standard UNE EN-124
Features: Sound-proof joint included, metal non-slip surface, coated with non-toxic, non-flammable and non-polluting water-soluble black paint.
Place of installation And Loading:
Group
|
Group 1(min class A125)
Areas which can only be used by pedestrians and pedal cyclists
|
|
Group 2(min class B125)
Footways, pedestrion areas and comparable areas, car parks or car parking decks
|
|
Group 3(min class C250)
For gully tops installed in the area of kerbside channels of roads(figure a)which when measured from the kerb edge extend a maximum of 0.5m into the carriageway and a maximum of 0.2m into the footway.
|
|
Group 4(min class D400)
Carriageway of roads(including pedestrian streets), hard shoulders(figure a and b) and parking areas for all types of road vehicles.
|
|
Group 5(min class E600)
Areas imposing high wheel loads eg. Docks aircraft pavements.
|
|
Group 6(min class F900)
Areas imposing particularly high wheel loads eg. Aircraft pavements.
|
Quality Control
We control the quality from raw material to finished products completely according to ISO9001:2008 standard.
Cast iron manhole covers
1. Suitable for the place according to the customer requirements
2. Manufactured to BS EN124:1994
3. Material: Ductile Iron complying with Grades EN-GJS-500-7 or gray iron
4. Marking: it will be casted as required
5. Finish:Coating will be black bituminous paint. Or as customer requirements
6. We can design and manufacture as customer requirements
7. Closed keyholes
8. Options-Locking and lifting keys
9. Anti-theft: Cover and base frame integrate connection.
10. Loading-bearing great: The toughness of ductile iron is fourfold that of ordinary cast iron, close to steel materials, suitable for all kinds of road use
11. Corrosion resistant:Sewer internal environment complex, filled with various chemical substances, ductile iron does not suffer chemical corrosion, service life more than 30 years
12. Opens conveniently: light weight, single unarmed can be open, convenient maintenance.
